FLEX I/O SDI 4I2O

£1,008.00

Magewell Part Number: 11800

4-channel 2K capture +2-channel 2K playback card

  • Simultaneously capture 4 channels of SD/HD/3G/2K SDI + embedded audio
  • Simultaneously playback 2 channels of SD/HD/3G/2K SDI + embedded audio

Out of stock

Description



Capture Features Playback FeaturesOthers
4x SDI input interface

Max input resolution at 2048×1080

10-bit video processing

Low latency mode

Time code extraction

Obtain ANC data

Image cropping

Deinterlacing

Up/down scaling

Aspect ratio conversion

Color space conversion

OSD

Multiple capture streams

Hardware timestamp

SG-DMA for video capture
2x SDI output interface

Max resolution at 2048×1080

10-bit video processing

Up/down scaling

Aspect ratio conversion

Color space conversion

SG-DMA for video playback

Timecode output

Custom ANC data output
Host interface:PCIe Gen2 x4

OS support:Windows and Linux

Provide Windows and Linux SDK

Universal driver;updatable firmware

Support Capture Express

3-year warranty

LED indicator light

Rotary switch for card marking

Specifications

Supported OSWindows
• Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
• Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
• CentOS 6.5/7 (x86 & x64)
• Fedora 25/26/27 (x86 & x64)
• Red hat 6.5 and above (x86 & x64)
• Other Linux OS with kernel version 2.6.35 and above
Recommended OS (tested)Windows
• Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
• Ubuntu 12.04/14.04/16.04 (x86 & x64)
• Ubuntu 17.04/17.10 (x64)
• CentOS 6.5/7.2 (x86 & x64)
• Fedora 25/26 (x64)
• Red hat 6.5 (x86 & x64)
Supported APIsWindows
• DirectShow
• DirectKS
• Wave API/DirectSound/WASAPI
Linux
• V4L2
• ALSA
Supported SoftwareVLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime, AV Foundation bbased encoding or streaming software

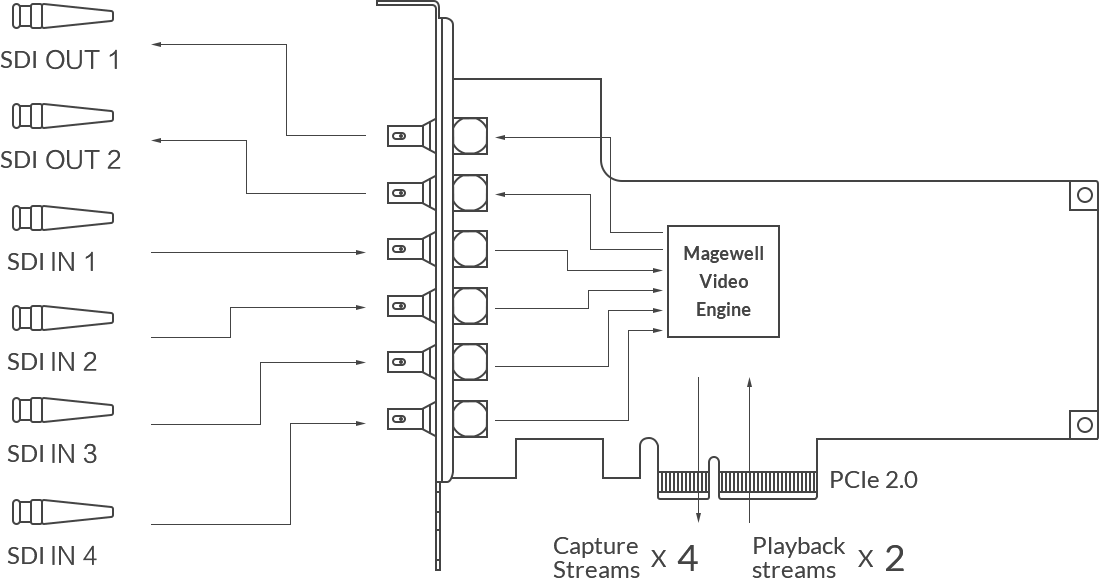

Input Interfaces4x HD-BNC
• SD/HD/3G/2K SDI
Output Interfaces2x HD-BNC
• SD/HD/3G/2K SDI
Host InterfacePCIe Gen2 x4
Input featuresIntegrated cable equalizer supporting cable lengths up to 230M for HD-SDI signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Support for 2K (2048x1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 3Gb-DL. Combine input channel 1&2 or 3&4 to one dual-link for input
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 16 audio channels at 48KHz
Support for extraction of audio information and channel status
Support for extraction of timecode
Support for obtaining ANC data
Limited support of 3Gb-DS: only the first stream can be captured
Video Capture FormatsSupport for video resolutions up to 2048x1080
Support capture format 4:2:0 8-bit: NV12, I420, YV12
Support capture format 4:2:2 8-bit: YUY2, YUYV, UYVY
Support capture format 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32
Support capture format 4:4:4 10-bit: V410, Y410
More capture format can be set using Flex I/O SDK (based on DirectKS)
Video Processing FeaturesTwo video processing pipelines with 180 Mpixels/s processing bandwidth
Fully capable of processing at 10 bit
Video cropping
Video scaling
Video de-interlacing
• Weave
• Blend top & bottom field
• Top field only
• Bottom field only
Video aspect ratio conversion
• Auto or manual selection of input aspect ratio
• Auto or manual selection of output aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of output color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
• Support for PNG OSD image (up to 2048×2160)
• Support for dynamic loading of RGBA OSD image via SDK
Deliver Multiple Streams of Captured videoFor any one input channel, deliver multiple streams to the computer
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, color adjustment and OSD settings for each individual stream
Video capture SG-DMA~400MB/s per channel DMA bandwidth in PCIe 2.0 system
~200MB/s per channel DMA bandwidth in PCIe 1.0 system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA by AMD GPU
Support for GPUDirect by Nvidia GPU
Video Playback Features
Integrated cable driver supporting cable lengths up to 230M for HD-SDI signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Support for 2K (2048×1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 3Gb-DL. Combine two output channels to one dual-link for output
Support for 10/12-bit color depth
Support for up to 16 audio channels at 48KHz
Support for timecode output
Support for custom ANC data output
Video Playback FormatSupport for video resolutions up to 2048x1080
Support for output format 4:2:0 8-bit : NV12,I420
Support for output format4:2:2 8-bit : YUY2, UYVY
Support for output format4:4:4 8-bit : V308, IYU2, V408, BGR24, BGR32
Support for output format 4:4:4 10-bit : V410, Y410
Video Playback Processing FeaturesVideo processing pipelines with 180 Mpixels/s processing bandwidth
Fully capable of processing at 10 bit
Video scaling
Video aspect ratio conversion
• Auto or manual selection of input aspect ratio
• Auto or manual selection of output aspect ratio
• Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
• Auto or manual selection of input color format & quantization range
• Auto or manual selection of output color format, quantization range & saturation range
• Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
• Support for Limited or Full quantization range
• Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate convert & output or directly output
Video playback SG-DMA
~400MB/s per channel DMA bandwidth in PCIe 1.x system
~600MB/s per channel DMA bandwidth in PCIe 2.x system
Support for DirectGMA by AMD GPU
Support for GPUDirect by Nvidia GPU
Multiple devices on one computer
Support for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Flex I/O 4i2o” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Ultra Low Latency SupportLatency of 64 video lines
Partial notification mode in SDK
Timestamp & A/V SynchronizationHardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
SDKFlex I/O SDK for DirectShow provides the developer a quick way to integrate the extended features of the cards (Windows)
Flex I/O SDK for DirectKS provides the developer the most flexibility and highest performance(Windows)
Windows Driver Tweaks
All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware UpgradeMultiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown when it is not in use
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator
Status LEDs indicate the working state of each channel:
• Pulsing slowly: idle
• On: input signal locked
• Off: input signal unlocked
• Double blinks: memory failed or FPGA configuration failed
Form Factor
Normal profile PCIe x4 Add-on Card
140mm x 91mm (without PCI bracket)
Power Consumption
12V max current: TBD
3.3V max current: TBD
Max power consumption: TBD
Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

Accessories

HD-BNC to BNC Cable

Part number: 90053
